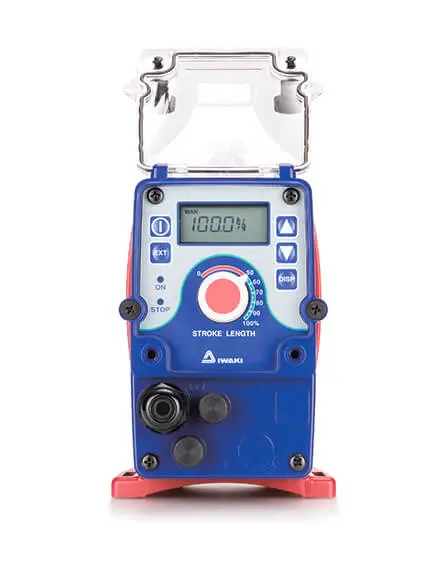

EWN Series

The EWN Series electronic metering pumps offer superior high speed dosing capability with more standard features.

Electromagnetic Chemical Metering Pump EWN Series offer superior high speed dosing capability with more standard features. The flexibility of the EWN-R pump enable it be integrated into virtually any chemical feed application using a universal-voltage, digital controller with an expanded set of control features.

Superb valve performance and advanced solenoid engineering combine to make a highly precise pump for the most demanding applications. EWN pumps have outputs to 6.7 GPH (25.2 L/h) and a maximum pressure of 290 PSI (20 bar). The high speed of operation results in high resolution chemical feed and long service life. Quiet and compact, the EWN pumps prime in seconds and hold prime reliably.

High Speed Performance: Electromagnetic Chemical Metering Pump EWN Series operate up to 360 strokes-per-minute with adjustments in 1 spm increments and it is providing high resolution chemical feed. Adjustable stroke length further increases the ability to refine the output.
Multi-function Digital Controller: the controller in the EWN-R pump provides for flexible pump control including:

  • scalable Analog control,
  • Digital Input with both Multiply and Divide capability,
  • external stop control,
  • simple speed and stroke length control.

Engineered Longevity: all E-Series pumps feature dual bearing support. The armature and shaft are supported with a bearing on each end. This ensures proper axial movement, enabling the E-Series to operate at 360 SPM while extending the life of the diaphragm.
Superior Check Valve Performance: dual Check Valve Assemblies in both suction and discharge fittings feature precision ball guides and tapered seats. Precise machining and molding of parts limit valve ball travel, ensuring that balls fully seat and seal with every stroke. This superior check valve design guarantees fast priming and reliable performance.
Flexible Connections: a removable tubing insert provides flexibility of tubing sizes and eliminates twisting of the tubing during connection.
High Compression Ratio: the compression ratio of a metering pump is important because it affects the pump’s ability to prime and vent.  All E-Series pumps feature a very high compression ratio that ensures proper feed especially with off-gassing
products (i.e. Sodium Hypochlorite).

Nulantic Water is an exclusive representative of EWN Series Electromagnetic Metering Pumps  and is proud to serve customers and projects based in Atlantic Canada.
