TRU-FLO compact regulator from Grande
The TRU-FLO Compact Regulator maintains precise flow rates in CSO, SSO, and batch plant effluents. It regulates flow from 160 gpm to 7,100 gpm with minimal maintenance and automatic self-flushing.
The TRU-FLO Compact Regulator ensures accurate flow control in CSO, SSO, and batch treatment plant effluents. It operates with a flow range from 160 gpm (10 L/s) to 7,100 gpm (450 L/s), maintaining a constant flow rate regardless of upstream water levels. This compact and efficient system eliminates the need for a separate structure, providing a cost-effective solution for small to medium discharges.
Key Features of the TRU-FLO Compact Regulator
- Wide Flow Range: Regulates flows from 160 gpm to 7,100 gpm, suitable for various applications.
- Water Head Up to 26 ft (8 m): Designed to operate effectively in submerged conditions.
- No Separate Structure Required: The system installs directly into the wet well or storage area.
- Automatic Self-Flushing: Prevents blockages by automatically flushing when necessary.
- Adjustable Flow Rate: The design flow rate can be adjusted on-site to meet specific needs.
- Compact and Reliable: Its stainless steel construction ensures durability and long-term reliability.
- Cost-Effective: Reduces the need for additional structures or complex installation processes.
How it Works

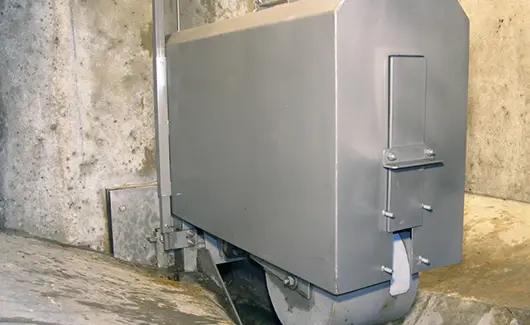

The TRU-FLO Compact Regulator uses an integrated float housed in a watertight enclosure to control the position of the pivoting radial gate. As the upstream water level rises, the float moves within the enclosure, adjusting the gate’s position to maintain a constant flow. Obviously, During low flow periods, the radial valve remains fully open. When a blockage occurs, the self-flushing mechanism kicks in, opening the gate fully to clear debris before resuming normal operation.
Each TRU-FLO regulator is pre-calibrated at a full-scale test bench and shipped ready to install. The system’s setpoints are clearly marked for easy future adjustments, eliminating the need for costly on-site calibration.
Nulantic Water proudly represents TRU-FLO compact regulator from Grande throughout Atlantic Canada. What is more, we offer advanced water management solutions that improve overflow control and water quality. Our focus on reducing water pollution and maximizing storage capacity ensures reliable, cost-effective solutions for local industries and municipalities.
