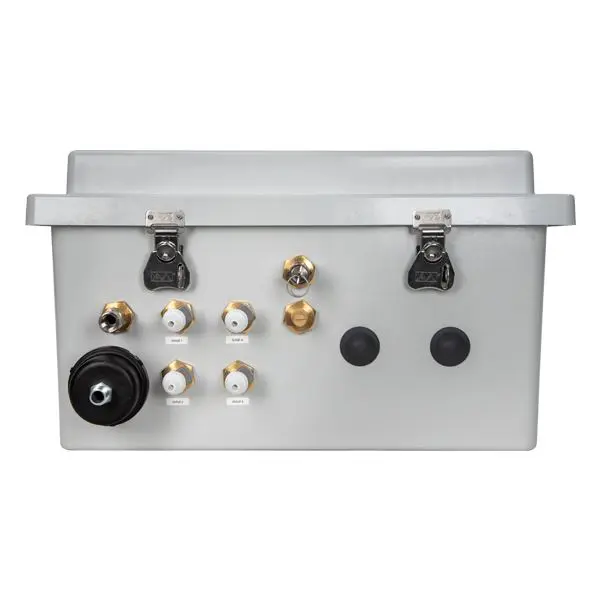

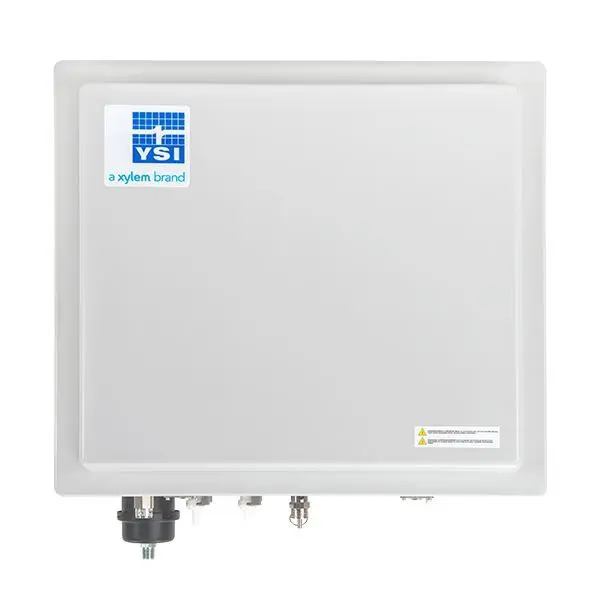

YSI Air Compressors for IQ SensorNet

YSI Air Compressors for IQ SensorNet provide pressurized air cleaning to sensors and are controlled by relay connections in IQ SensorNet systems. Available in one-, two-, and four-channel versions, the YSI Air Compressor can clean up to four sensors with a single compressor, delivering compressed air output at up to 85psi.

Why use air cleaning?
Sensors within wastewater and other challenging environments can foul quickly due to the accumulation of solids or biological growth. In fact, manual cleaning may be required frequently to maintain accuracy. Automatic cleaning systems, such as air cleaning, can reduce cleaning requirements and extend the time between manual cleanings.

Key Benefits:

• Cost Savings: it is available in single, dual, and four-channel variations to clean multiple probes simultaneously, lowering installation costs.
• Low Maintenance: The unit’s powerful compressor connected to the sensor’s cleaning head assembly keeps probes clean and reduces manual maintenance requirements.
• Compatibility: Compatible with IQ SensorNet’s extensive suite of online controllers and sensors.
• Improved Efficiency: Enhances operational efficiency with continuous data collection.

Specifications:

• Compressed Air Outputs: One, Two, or Four (depending on the model)
• Electrical Rating: Various ratings for 115 VAC and 230 VAC models
• Enclosure Protection: IP65, vent port fitted
• Operating Conditions: Suitable for dry indoor and outdoor locations
• Environmental Range: 0 to 95% humidity, 11.53 to 14.7 psi atmospheric pressure, sea level to 2000 meters elevation
• Maximum Pump Duty Cycle: 1 minute ON, 15 minutes OFF
• Operating Temperature: 32° to 122°F (0° to 50°C); 14° to 122°F (-10° to 50°C) with optional heater

With these features and benefits, YSI Air Compressors ensure reliable and efficient sensor maintenance in any environment.
