IQSensornet 2020 3G
A modular plug-and-play system allows you to monitor the water quality with up to 20 sensors continuously and accurately.
(Replacement of discontinued 2020 XL)
The YSI IQ SensorNet 2020 3G is a modular water quality system for a complete sensor network ideal for various installation needs. The modular system can accept additional sensors easily at any time. This is a powerful system to continuously measure water quality parameters anywhere in a facility for process control.
The terminal features include:
•Centralized power supply along the entire network
•2-wire cable provides power and data transfer
•Easily select relays and analog outputs
•Digital outputs also available with Profibus, Modbus, or Profinet
•Optional modem connection via analog or GSM modem
•Wireless connection via radio transmission
•Easily add measuring points along the network
•Multi-functional USB interface with fast data exchange (electronic-key function allows USB stick to function as a key)
•Programmable access permission
•LED status update
•If two terminals are used, the second one would take over automatically if the first one fails or loses power, etc. The system is capable of measuring: Dissolved oxygen (optical or electrochemical),pH, ORP, Conductivity, Temperature, Turbidity, TSS (total suspended solids), Ammonium, Nitrate, Potassium, Chloride, COD (chemical oxygen demand), TOC (total organic carbon), DOC (dissolved organic carbon share of TOC), SAC (spectral absorption coefficient), BOD (biochemical oxygen demand), Sludge Level.
The entire system accommodates up to 20 sensors for the above listed parameters in any combination. Any sensor can also be changed out at any time without re-wiring if another parameter is needed. Simply change sensors (parameters) and start getting data for the new parameter.

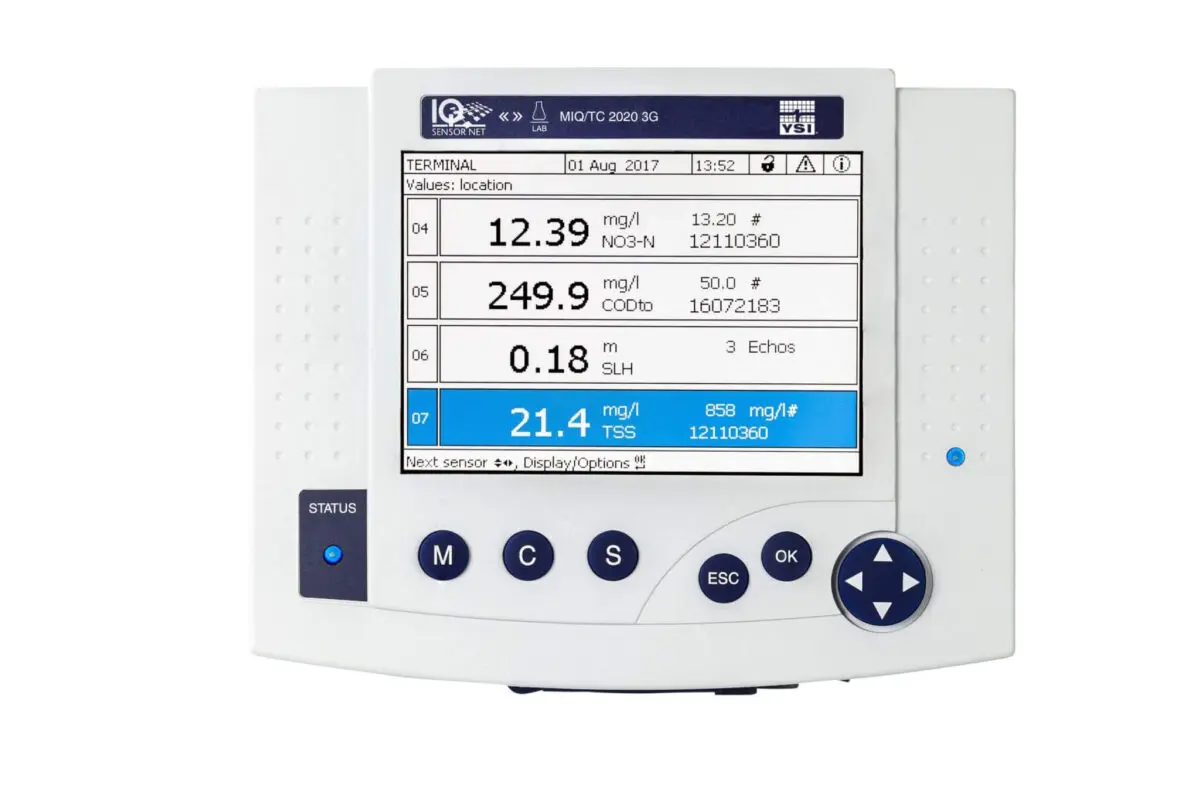

The IQ SensorNet terminal has an easy-to-read digital display. The terminal can be kept at a fixed location or easily disconnected and added to a module for a simple mobile terminal solution. You just pull it off its location and move it to the new location without tools and within seconds.
