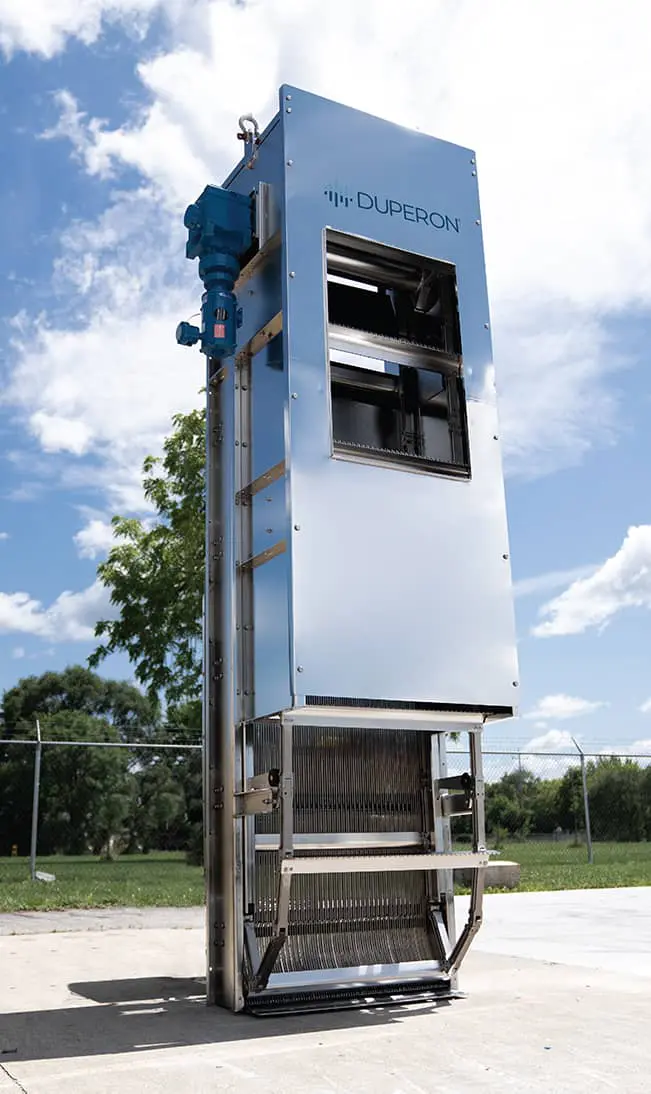

Duperon FlexRake IQ2® Screening System

The FlexRake IQ2® Screening System is an intelligent screening system that adapts to varying flow conditions and handles high peaking factors caused by extreme weather and fluctuating debris. It combines fine screening during normal flow and automatically expands during peak conditions. This provides additional hydraulic capacity and a safety factor, ensuring maximum resiliency. The system uses Smart Bar Screen™ technology, offering a coarse screen for heavy flow and fine screen for debris capture, making it ideal for municipal headworks, pump stations, and industrial applications.

Key Features of the FlexRake IQ2® Screening System

• Intelligent Performance: Automatically adjusts to real-time conditions, offering fine screening during normal flows and wider openings during peak flows.
• 4x Greater Debris Removal: Enhanced scraper design increases debris removal capacity, improving efficiency in handling heavy solids.
• Improved Grit and Rock Handling: The re-engineered FlexLink™ and bar screen design improve solids capture and debris handling.
• Smart Bar Screen™: Physically transitions to wider openings during peak flow to provide extra hydraulic capacity.
• Rapid Re-Engagement: Handles large debris without shutdown and quickly returns scrapers to clean the screen.
• Low Maintenance: The system is self-cleaning, reducing downtime and extending system longevity.
• Flexible Installation: Available in widths from 2 ft to 6 ft, with a maximum length of 50 ft, offering versatile installation options.
• Durable Construction: Built with 304 SSTL, and 316 SSTL is available for corrosive environments.
• Enhanced Efficiency: Cleaning frequency is every 7 seconds at maximum speed for continuous operation.

How the FlexRake IQ2® Screening System Works

The FlexRake IQ2® uses Smart LogIQ™ Sequence of Operations to automatically adjust its screening capabilities based on real-time flow and debris conditions. Re-engineered FlexLink™ technology ensures that large debris is efficiently handled without disrupting operation. The scrapers are designed to remove up to 4x more debris and quickly re-engage into the screening field. During peak flow conditions, the system expands its bar openings, providing extra capacity and automatically adapting to meet changing conditions.

Nulantic Water proudly represents FlexRake IQ2® Screening System from Duperon throughout Atlantic Canada. What is more, we offer advanced water management solutions that improve overflow control and water quality. Our focus on reducing water pollution and maximizing storage capacity ensures reliable, cost-effective solutions for local industries and municipalities.
